Intelligent Quality Optimizer IQ-501
Name and Function of Each Component
No. | Name | Description |
|---|---|---|

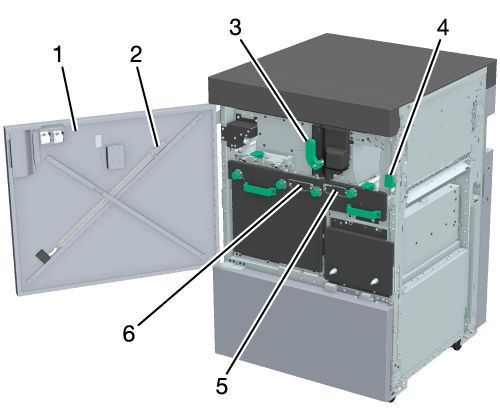

1 | Intelligent Quality Optimizer front door | When clearing a paper jam, open the door and remove the paper. |
2 | Cleaning bar | Cleans the Inline Scanner. |
3 | Lever [IQ7] | When clearing a paper jam, hold the lever and pull out the horizontal conveyance section. Then, remove the paper. |
4 | Lever [IQ1] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
5 | Inline Scanner1 | Read lower surface of conveyed paper. |
6 | Inline Scanner2 | Read upper surface of conveyed paper. |

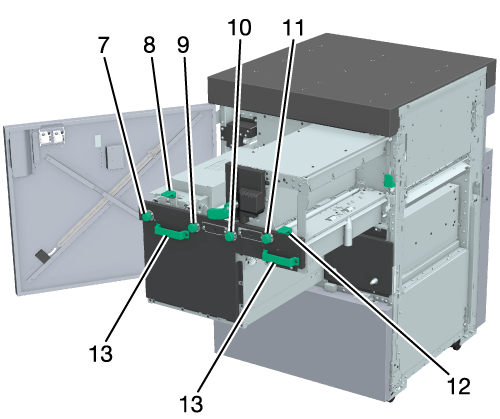

7 | Knob [IQ6] | When clearing a paper jam, turn the knob to feed the paper through. |
8 | Lever [IQ9] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
9 | Knob [IQ5] | When clearing a paper jam, turn the knob to feed the paper through. |
10 | Knob [IQ4] | When clearing a paper jam, turn the knob to feed the paper through. |
11 | Knob [IQ3] | When clearing a paper jam, turn the knob to feed the paper through. |
12 | Lever [IQ2] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
13 | Handle [IQ8] | Pull out when clearing a paper jam. |
14 | Service port (USB 3.0 Type A e 2) | Used when connecting external memory media (USB memory, USB-HDD). Service port (USB 3.0 Type A e 2) supports low power devices only. Please provide an external supply of power for devices that require a large amount of power. |
15 | Network port (10BASE-T, 100BASE-TX, 1000BASE-T) | Connect Ethernet cable and use Auto Inspection Unit UK-301 Web Utilities. |
16 | Auto Inspection Unit UK-301 (optional) | Required options when using Relay Unit RU-702. |
17 | Power switch | Turns the Auto Inspection Unit UK-301 power ON/OFF. |
Specifications
Name | Intelligent Quality Optimizer IQ-501 |
Format | Automatic image reading correcting device |
Function | 1 path double-sided read inline scanner + spectrophotometer |
Paper Size | Widthwise 95 mm to 331 mm, lengthwise 139 mm to 1,300 mm / Widthwise 3.74" to 13.03", lengthwise 5.47" to 51.18" |
Paper weight | 40 g/m2 to 450 g/m2 / 11 lb Bond to 119 lb Bond |
Size | 663 mm (W) e 696 mm (D) e 1,020 mm (H) / 26.1" (W) e 27.4" (D) e 40.16" (H) |
Mass | Approx. 184 kg / 405.65 lb |
Power | AC 100 V to 240 V, 50/60 Hz (supplied from power cord) DC 24 V, 5 V (supplied from partial front stage) |
Maximum power consumption | 600 W or less (including next stage connection options) |
