Paper Feeder Unit PF-713

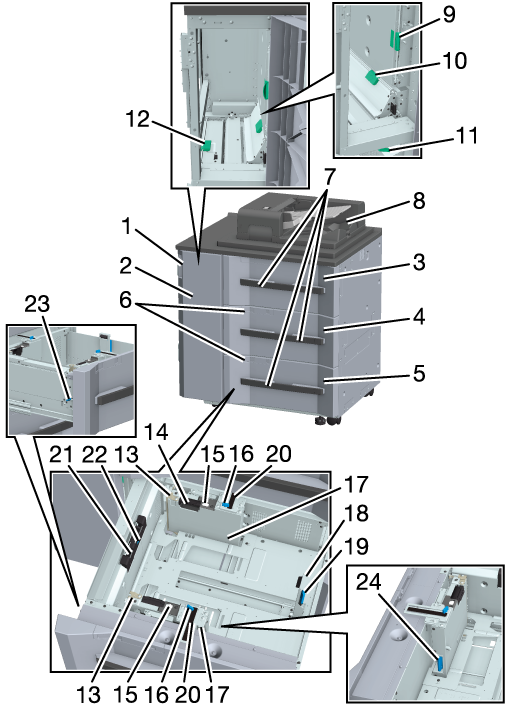

Name and Function of Each Component
No. | Name | Description |
|---|---|---|
1 | Tray left side door knob | Used when opening Tray left side door. |
2 | Tray left side door | Open when opening Right side door to handle paper jams, and when clearing paper feeder unit tray paper jams. |
3 | Upper tray (Tray 1) | Stores 1,390 sheets (80 g/m2 / 21 lb Bond). |
4 | Middle tray (Tray 2) | Stores 1,390 sheets (80 g/m2 / 21 lb Bond). |
5 | Lower tray (Tray 3) | Stores 1,850 sheets (80 g/m2 / 21 lb Bond). |
6 | Air nozzle confirmation window | When adjusting the air flow volume in Middle tray and Lower tray through this window, you can check the paper feedability. You cannot check it from the Upper tray. |
7 | Tray handle | Hold and pull the handle when pulling out the tray. |
8 | Dual Scan Document Feeder (ADF) | Mounted in this paper feed unit tray. A multi-page original can be fed and scanned one sheet at a time. Even both the front and back sides of 2-sided original are scanned in one feed, without inverting it. |
9 | Lever [PF1] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
10 | Lever [PF2] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
11 | Lever [PF3] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
12 | Lever [PF4] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
13 | Small size guides (2 locations) | Open both sides toward the inside when loading paper with a width of less than 139.7 mm / 5.5". |
14 | Side air nozzle | Blows air for the paper to float on in order to prevent multiple sheets of paper being fed in at the same time. |
15 | Paper holding plate fixing lever (2 locations) | Slide from the fixed position to the right depending on the target paper conditions. |
16 | Side guide lock knobs (2 locations) | Turn when moving or fixing Side guides in place. |
17 | Side guides (2 locations) | It is run alongside both sides of the set paper. |
18 | Rear guide plate | It is run alongside the back side of the set paper. |
19 | Rear edge guide lock release lever | When moving Rear guide plate, press the lever on the left side to unlock. |
20 | Paper size indicator | Check the position of Side guides using the scale. |
21 | Edge air nozzle | Blows air to separate the paper. |
22 | Upper limit sensor position adjustment lever | When the lever is lifted, feed performance may drop, so do not move (slide) from the state when fixed at bottom side. |
23 | Bottom plate fixing knob | Turn clockwise while sliding forward, and adjust the bottom tray in the highest position. |
24 | Side guide lock release lever | When moving Side guides, press the lever on the back side to unlock. |

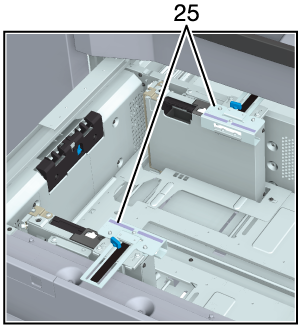

25 | Side auxiliary guides (2 locations) | When loading tab paper, attach to Side guides. |
Reference
- For details about the name and function of each component in Dual Scan Document Feeder (ADF), refer to Dual Scan Document Feeder (ADF) (mounted in Paper Feeder Unit PF-713 as standard.).
Specifications
Name | Paper Feeder Unit PF-713 |
Format | 3-level paper tray with scanner and ADF (mounted as the 1st unit when multiple units are connected.) |
Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 w/v, 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w , 8 e 13 w, 8K w, 16K w/v Custom: Widthwise 100 mm to 330.2 mm, Lengthwise 139.7 mm to 487.7 mm*1 / Widthwise 3.94" to 13", Lengthwise 5.5" to 19.2"*1 Tab paper*2: A4T v, 8.5 e 11T v Envelope: Widthwise 100 mm to 245 mm, lengthwise 148 mm to 375 mm / Widthwise 3.94" to 9.65", lengthwise 5.83" to 14.76" *1: Long paper that is widthwise 250 mm to 330.2 mm, and lengthwise 487.8 mm to 1,300 mm / 9.84" to 13", lengthwise 19.2" to 51.18" can only be fed through when the Feed Adjuster FA-505 is mounted. *2: When loading tab paper, attach Side auxiliary guides. Series B paper is set to JIS or ISO standard size by default. This setting differs depending on the shipping region. For JIS/ISO switching, contact your service representative. Detectable fixed sizes can be changed. Furthermore, use of K size can be selected on the [Utility] screen, and K size can be detected. When paper is less than 139.7 mm / 5.5" widthwise, use Small size guides. |
Paper type | Plain paper, Fine, Color Specific, Coated-G, Coated-M, Tab paper, Textured*, Envelope* *: Lower tray only |
Paper weight | 52 g/m2 to 450 g/m2 / 14 lb Bond to 119 lb Bond* *: The following paper sizes are only available for 351 g/m2 to 450 g/m2 / 94 lb Bond to 119 lb Bond. Such paper can be loaded only in the Lower tray. Standard: SRA3 w, A3 w, 13 e 19 w, 12 e 18 w, 11 e 17 w Custom: Widthwise 279.4 mm to 330.2 mm, lengthwise 420 mm to 487.7 mm / Widthwise 11" to 13", lengthwise 16.54" to 19.2" *: Envelope: 70 g/m2 to 100 g/m2 / 19 lb Bond to 27 lb Bond |
Feed capacity | Upper tray/Middle tray: 1,390 sheets (80 g/m2 / 21 lb Bond, stack height 153 mm / 6.02") Lower tray: 1,850 sheets (80 g/m2 / 21 lb Bond, stack height 203.5 mm / 8.01") |
Size | 996 mm (W) e 772 mm (D) e 1,228 mm (H) / 39.21" (W) e 30.39" (D) e 48.35" (H) |
Mass | Approx. 250 kg / 551.16 lb |
Power | Metric area: 220 V to 240 V, 50/60 Hz (supply from power cord) Area in inches: 100 V to 127 V, 50/60 Hz (supply from power cord) DC 24 V, 12V, AC 200 V to 240 V, 50/60 Hz (supplied from the machine) |
Maximum power consumption | 700 W or less (Dehumidifier Heater HT-506 option not included) |
Reference
- For details about the specifications of Dual Scan Document Feeder (ADF), refer to Dual Scan Document Feeder (ADF) (mounted in Paper Feeder Unit PF-713 as standard.).
