Dual Scan Document Feeder (ADF) (mounted in Paper Feeder Unit PF-713 as standard.)

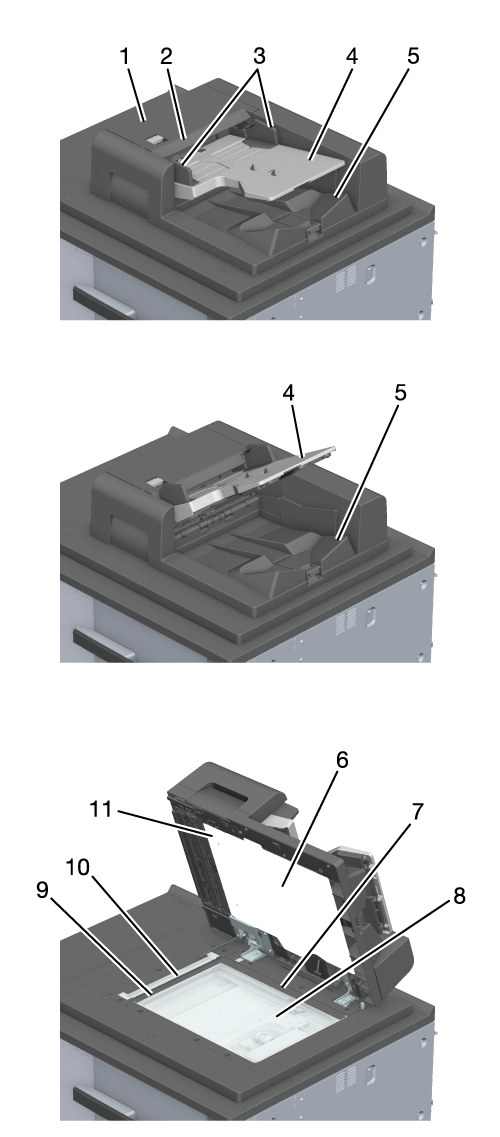

Name and Function of Each Department
No. | Name | Description |
|---|---|---|
1 | Left original conveyance cover | When there is a paper jam, open to the left for processing. |
2 | ADF original scale | The allowed paper sizes, paper surface quality, and types of paper that are not allowed are listed. |
3 | Original guides | It is run alongside both sides of the set paper. |
4 | Original tray | Load the document to be read. Up to 300 sheets can be set. Also, when there is a paper jam, open to the top for processing. |
5 | Original output tray | The read document is ejected. |
6 | ADF guide cover | The paper is automatically set in Original glass. Also, when setting paper in Original glass manually, close and then cover. |
7 | Horizontal size guide | Document size is measured horizontally. |
8 | Original glass | Reads document image(s). |
9 | Slit scan glass | When using ADF, the document images are read in this part. |
10 | Vertical size guide | Document size is measured vertically. |
11 | Slit scan glass for back side | When using ADF, the images on the back side of the document are read in this part. |
Specifications
Name | Dual Scan Document Feeder (ADF) | |
Type of paper feed device | Reverse automatic document feeder | |
Image type | Thin paper 1-sided original: 35 g/m2 to 49 g/m2 / 10 lb Bond to 13 lb Bond Plain paper 1-sided original: 50 g/m2 to 210 g/m2 / 13 lb Bond to 56 lb Bond 2-sided original: 50 g/m2 to 210 g/m2 / 13 lb Bond to 56 lb Bond Mixed original (Simplex): 35 g/m2 to 210 g/m2 / 10 lb Bond to 56 lb Bond Mixed original (Duplex): 50 g/m2 to 210 g/m2 / 13 lb Bond to 56 lb Bond | |
Original size | Standard: Metric area: A3 w, B4 w, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 11 e 17 w, 8.5 e 11 w/v, 8 e 13w Inch area: A3 w, B4 w, A4 w/v, B5 w/v, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 w/v Custom: Widthwise 100 mm to 297 mm, lengthwise 139.7 mm to 431.8 mm / Widthwise 3.94" to 11.69", lengthwise 5.5" to 17" | |
Document capacity | Max. 300 sheets (80 g/m2 / 21 lb Bond) | |
Document read speed | When copying | Simplex 75 sides/min. (A4 v/8.5 e 11 v, 600 dpi, full color) 80 sides/min. (A4 v/8.5 e 11 v, 600 dpi, monochrome) Duplex 150 sides/min. (A4 v/8.5 e 11 v, 600 dpi, full color) 160 sides/min. (A4 v/8.5 e 11 v, 600 dpi, monochrome) |
When scanning | Simplex 100 sides/min. (A4 v/8.5 e 11 v, 400 dpi, full color/monochrome) Duplex 200 sides/min. (A4 v/8.5 e 11 v, 400 dpi, full color/monochrome) | |
Power | Supplied from Paper Feeder Unit PF-713 | |
Maximum power consumption | 104.5 W or less | |
Size | 615 mm (W) e 511 mm (D) e 177 mm (H) / 24.21" (W) e 20.12" (D) e 6.97" (H) | |
Mass | Approx. 15.1 kg / 33.29 lb | |
