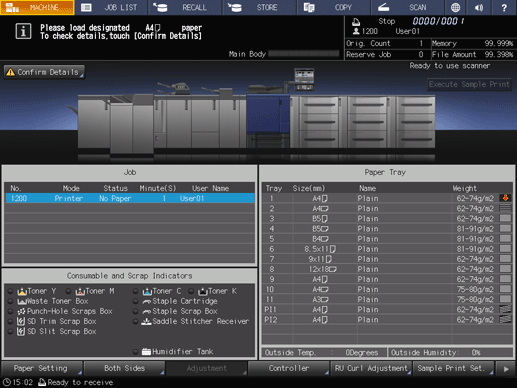

Please load designated $####### paper / To check details, touch [Confirm Details]

Cause and Action

If the tray in use runs out of paper, the machine stops temporarily.

The output restart method differs slightly between print job and copy job. Use the most suitable method for the target job.

For print job

  • Replenishing paper

  • Forcibly printing data

  • Changing paper setting of another tray

For copy job

  • Replenishing paper

  • Using another tray

Tips

  • If you set Software Switch No. 73 on, you can temporarily save data on the HDD without entering the wait mode depending on the printer driver.
    For details about Software Switch, refer to [Software Switch Setting].

Replenishing paper (Print job and copy job)

  1. Load paper in the empty tray.

    • supplementary explanationFor details on how to replenish paper, refer to Loading Paper.

    NOTICE

    • Be sure to load the same paper as that loaded before. The machine cannot restart output with paper of a different size loaded. Using a different paper type or weight may cause paper misfeed or machine trouble.

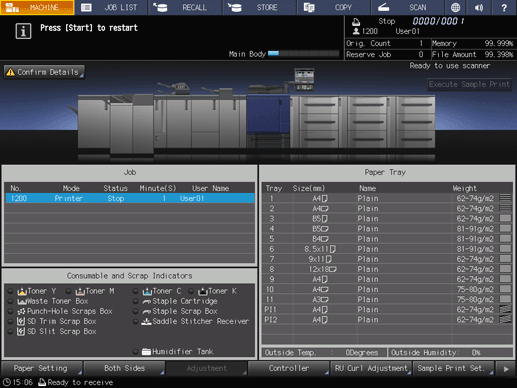

    • supplementary explanationWhen the tray is replenished with paper, the message changes to Press [Start] to restart.

  2. Press Start on the control panel.

    The machine resumes printing.

Forcibly printing data (Print job)

Use a desired tray to start printing, regardless of the paper setting required by the print data.

Tips

  • The tray selected for forced output will be used until that job is completed.

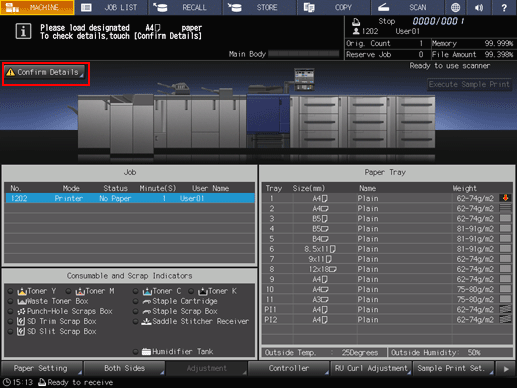

  1. Press Confirm Details.

    A dialog will be displayed.

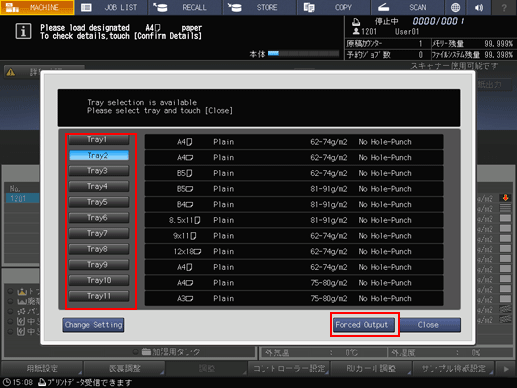

  2. Press a tray key to be used and then press Forced Output.

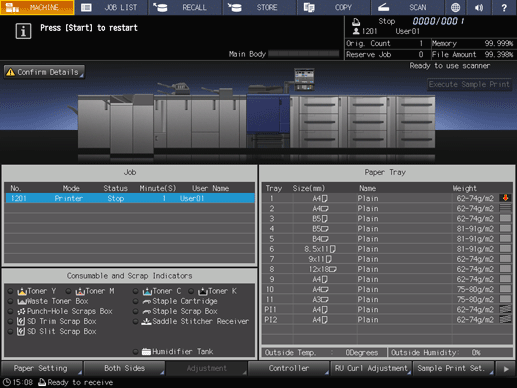

    The screen returns to the MACHINE screen and displays the message Press [Start] to restart.

  3. Press Start on the control panel.

    Paper will be fed from the tray selected in step 2 to start the printing operation.

Changing paper setting of another tray (Print job)

Change the paper settings of another tray (Current Setting) to the settings that the print data requires (Reserved Setting). Load the tray with paper that conforms to the changed settings, and then start printing.

  1. Press Confirm Details.

    A dialog will be displayed.

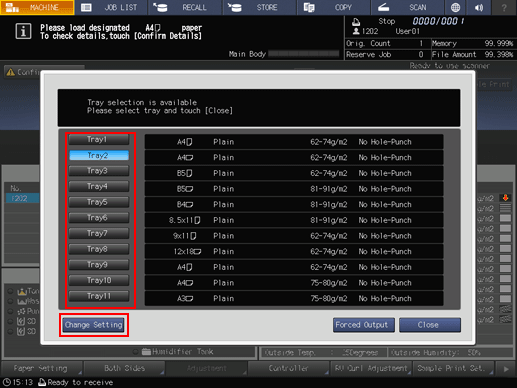

  2. Select a desired target, and press Change Setting.

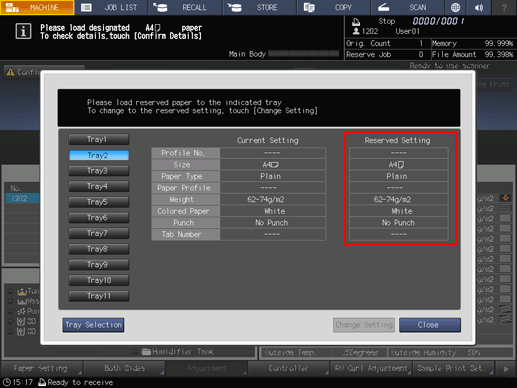

    The paper setting of the selected tray (Current Setting) and that required by the print data (Reserved Setting) are displayed.

  3. Load the tray selected in step 2 with paper of the conditions displayed as Reserved Setting.

    • supplementary explanationFor details on loading paper, refer to Loading Paper.

    NOTICE

    • Be sure to load paper of the specified size. If a different paper size is loaded, the machine cannot start the printing operation. Using a different paper type or weight may cause paper misfeed or machine trouble.

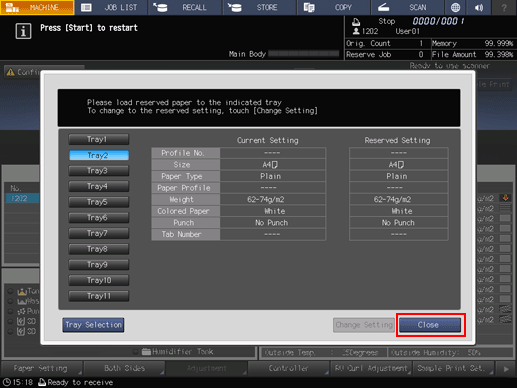

  4. Press Close.

    The screen returns to the MACHINE screen and displays the message Press [Start] to restart.

  5. Press Start on the control panel.

    This machine resumes printing.
