[Store]
Overview
Register the job conditions, which are set on the [STORE] screen, [COPY] screen, or [SCAN] screen, as a program.
Assign a program number (01 to 30) to the set job conditions. Then, name and register the program. Up to 30 programs can be registered.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to Overview of a Program.
Tips
The items able to be registered vary depending on the screen.
- [STORE] screen: [Print Side] / [Quality Adjustment] / [Scan Size] / [Color] / [Zoom Setting]
- [COPY] screen: [Paper Setting] / [Original Setting] / [Zoom Setting] / [Color/Print Side] / [Quality Adjustment] / [Output Setting] / [Application]
- [SCAN] screen: [Print Side] / [Quality Adjustment] / [Scan Size] / [Color/Resolution] / [Zoom Setting] / [Application]
Specifications
Category | Print Workflow, Copy / Scan | |||
Location | Machine | Control Panel | ||
Printer driver | - | |||
Application | - | |||
Required options | - | |||
Required items | - | |||
Setting items | [Store] screen | [*] / [)] | Switches the displayed job condition confirmation screen. | |
[Cancel] | Stops the registration operation, and returns to the previous screen. | |||
[OK] | Registers the settings based on the checked job conditions. Then, select the number to be registered. | |||
[Cancel] | Moves to the previous screen without saving the settings. | |||
[OK] | Saves the settings and moves to the previous screen. | |||
Remarks | - | |||
Reference | - | |||
Screen access | Control panel - [STORE] - Mode Memory- [Store] | |||
Control panel - [COPY] - Mode Memory- [Store] | ||||
Control panel - [SCAN] - Mode Memory- [Store] | ||||
Procedure
This section provides a description using the [COPY] screen as an example.
1
Set the desired copy job conditions on the [COPY] screen.
2

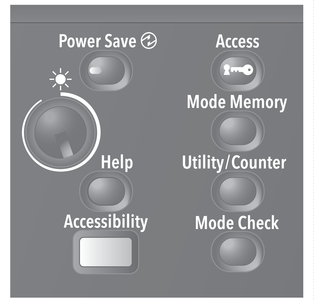

Press Mode Memory on the Control panel.

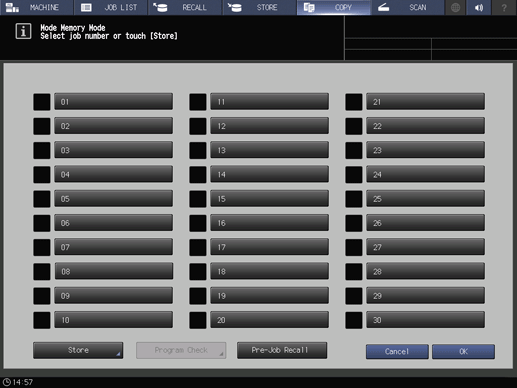

The [Mode Memory Mode] screen is displayed.
3
Press [Store].

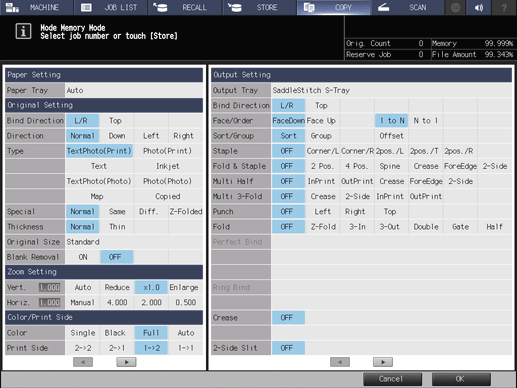

The job condition confirmation screen is displayed.
4
Press [*] or [)] to check the job conditions to register.
To change a job condition, return to the [COPY] screen, and set a new job condition.
5
Press [OK].
6

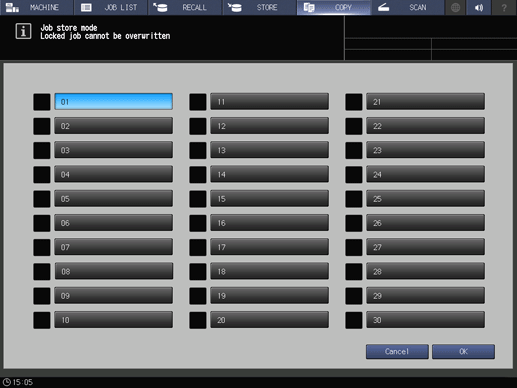

Select the key of the number to register, and press [OK].
A key with the program name displayed is already registered. However, such a key can be overwritten if it is not marked with a lock mark "
". No job conditions can be registered for a key marked with a lock mark. For details about how to lock or unlock a key, refer to [Lock/Delete Mode Memory].
7

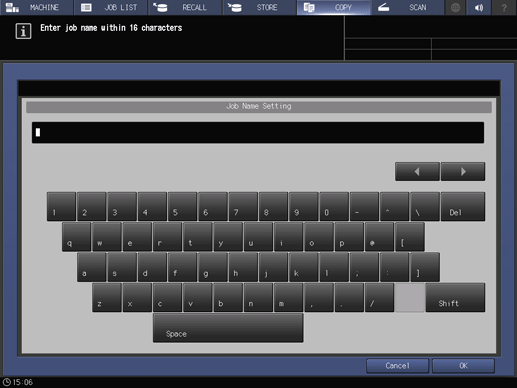

Enter the program name, and press [OK].
A program name can be entered using up to 16 single-byte characters (8 double-byte characters). For details about how to enter characters, refer to Entering Text.
8
Check that the program is registered for the selected key, and press [OK].
