Authentication Device Settings

When using Authentication Unit AU-201S, specify the target IC card and set authentication operations in advance.

1. Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

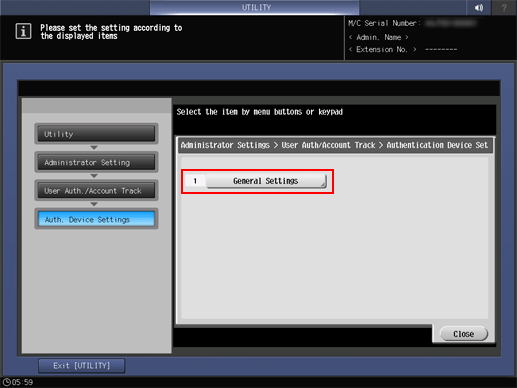

2. Press User Auth./Account Track, Auth. Device Settings, and General Settings on the Administrator Setting Menu screen in sequence.



   The General Settings screen is displayed.

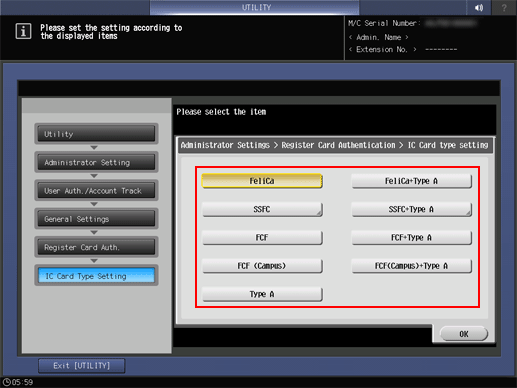

3. Press IC Card Authentication and IC Card Type Setting, then select the IC card to use.

   • supplementary explanationPress OK to complete the setting.

4. Select Operation Setting.

   • supplementary explanationSelect IC Card Authentication if you want to use only the IC card for authentication. To use both IC card and password for authentication, select IC Card + Password Authentication.

5. Press OK to complete the setting.

   The screen returns to the Authentication Method screen.
