Setting on the MACHINE Screen
The following keys are provided at the bottom of the MACHINE screen: Paper Setting, Both Sides, Adjustment, Controller, RU Curl Adjustment, Sample Print Set., Color Dens. Manual, Color Dens. Result and Reg./Del.PaperSet.. These buttons are collectively referred to as machine status function keys.
You can change the order to arrange the machine status function keys. For details, refer to [Machine Function Key Setting].

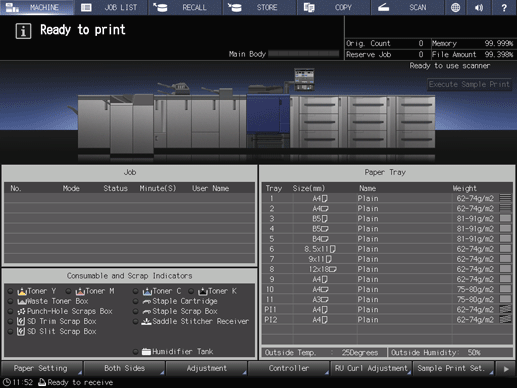

The screen below is the MACHINE screen of the machine mounted with three units of Paper Feed Unit PF-707m, Relay Unit RU-518, Integrated Color Care Unit IQ-501, Folding Unit FD-503, Saddle Stitcher SD-513, Finisher FS-532, and Image Controller IC-605.
For details about the displayed screens and settings when each key is pressed, refer to the following descriptions.
Paper Settingto[Paper Setting]
Both SidestoOverview of Both Sides Adjustment
AdjustmenttoFunction Overview
ControllertoController Setting
RU Curl Adjustmentto[RU Curl Adjustment]
Sample Print Set.toSettings for Execute Sample Print: Setting Execute Sample Print before Outputting
Color Dens. ManualtoManually Performing Color Density Manual Control
Color Dens. ResulttoChecking the Adjustment Result of Color Density Control
Reg./Del. Paper Set.toRegistering a Paper Profile on the Register/Delete Paper Setting Screen
