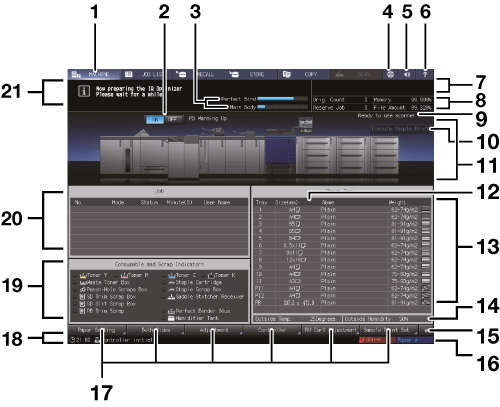

Components of the MACHINE Screen

The display of the MACHINE screen varies depending on the model you use.

This section describes ineo+ 3080 or ineo+ 3070 as well as the MACHINE screen to be displayed on the machine mounted with the options as described below.

The screen displays Relay Unit RU-518, Integrated Color Care Unit IQ-501, Folding Unit FD-503, Saddle Stitcher SD-513, Perfect Binder PB-503, and Finisher FS-532 as output options.

No.

Name

Description

1

MACHINE tab

Displays the MACHINE screen.

2

Perfect binder heater switch

Turns ON or OFF the PB (perfect binder) heater. If you know when to use the perfect binder in advance, turn it ON so that you can work efficiently.

When you do not use the heater, turn it OFF to prevent the deterioration of glue.

3

Perfect binder/main body warming-up status bar

Indicates the warming-up status while the perfect binder or main body is warming up. When the warming up operation is completed, the status bar disappears.

4

Web Browser

Displays a Web browser on the touch panel. If the machine is connected to the Internet, you can view external web pages.

5

Info. Sound/Voice ON/OFF

Press this to temporarily turn the speaker sound off.

This is available only when Speaker Sound is set to ON by selecting UTILITY - User Setting - System Setting - Operation/Info.Sound Setting - Volume Setting.

6

Help

Displays the help message which provides information about the screen currently displayed. Depending on the screen,  may be shaded and no help message can be displayed.

When the MACHINE screen is displayed, Help displays the method to replace a toner bottle or waste toner box, add staples, dump staples, punch, or trim scraps, supply glue pellets, load paper, and replenish water to the humidifier tank.

7

Output information indicator

Displays the print count, set count, and job number of the current job while printing.

8

Machine management information indicator

Displays the number of reserved job, remaining memory amount, original count, and file system amount.

9

Scanner message

Displays the status of the original scan of the Dual Scan Document Feeder (ADF) or Original glass.

10

Execute Sample Print

Makes a sample print during an output job. This option is displayed when the machine is mounted with Image Controller IC-605.

For details, refer to Overview of Sample Print.

11

Machine configuration display

Displays the configuration of main body and options.

12

Size (mm) / Size (inch)

The sizes are displayed in millimeters by default. Switching between millimeters and inches can be made from the UTILITY screen. For details, refer to [Unit Setting].

13

Tray information indicator

Displays paper size, orientation, name, weight, and paper amount in the tray.

14

Outside Temp. and Outside Humidity

Displays outside temperature and outside humidity that are detected with the temperature and humidity sensor mounted on the machine.

15

Machine function keys switch

Switches the display of the machine function keys.

16

Machine status indicator/right

Displays Fuser (Env.), USB Drive, Y-Toner, M-Toner, C-Toner, K-Toner, PM Call, ADF Clean, Consumable, Torque, Un-Comp., Security, Modem Err, ORU-M, and Dark Tone. Up to 4 indicators can be displayed in large size. When 5 or more indicators are displayed, small icons without texts will substitute for the indicators from the 4th and onward. The maximum number of items displayed is a total of 7, including 3 normal-sized icons and 4 small-sized icons.

17

Machine function keys display area

Paper Setting: Press this button when specifying paper conditions for Main Body Tray, Paper Feed Unit PF-707m or Paper Feeder Unit PF-602m, Multi Bypass Tray MB-506, Multi Bypass Tray MB-508, Banner Tray Unit MK-740, Output tray reinforcing unit for banner MK-740m, Large Capacity Unit LU-202m, Large Capacity Unit LU-202XL, Large Capacity Unit LU-202XLm, Post Inserter PI-502 - upper tray / lower tray, Folding Unit FD-503 - Post Inserter - upper tray / lower tray, and Perfect Binder PB-503 - Cover Tray.

Both Sides: Makes adjustments for images printed on the front and back sides of paper loaded into each tray (Tray 1 to Tray 11, bypass tray), as well as for rotate/skew adjustment, chart adjustment, gap adjustment, and scan measurement adjustment.

Adjustment: Adjusts the main body and optional equipment.

Controller: Configures the controller.

RU Curl Adjustment: Press this button to configure curl adjustment for each tray (Tray 1 to Tray 11, and bypass tray). When Humidifier HM-103 is mounted on Relay Unit RU-518, you can make the humidification setting for each tray.

Sample Print Set: Pressed to set sample print.

The following buttons are displayed when the Machine function keys switch is pressed.

Color Density Manual Control: Press this key to manually adjust the color density or manage the registered information for Color Density Manual Control. When Use Color Density Control is set to ON, this key is enabled.

Color Density Control Result: Press this key to check the periodic adjustment result of Color Density Control. When the periodic adjustment is conducted, this key is enabled.

Register/Delete Paper Setting: Press this key to register or delete the frequently used paper setting.

18

Machine status indicator/left

Displays the current time or the status of the image controller.

19

Consumable and Scrap Indicators area

Displays the current status of toner supply. Also, this area lights red to prompt a user to replace the waste toner box, add staples to the optional unit, dump scraps, and replenish water to the humidifier tank.

The number of replacements of the toner bottle can be counted. For details, contact your service representative.

20

JOB LIST

Displays the current status of the jobs to be operated on the machine. When there are any incomplete jobs, the Incomp. History key is displayed.

21

Message area

Displays messages concerning the current status of the machine or operation currently required.
