[Create]
Overview

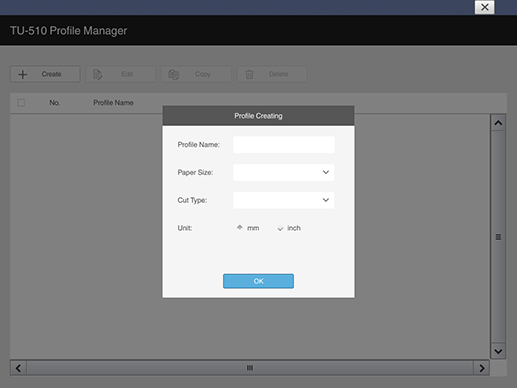

Create a new trimmer profile. Specify the profile name or paper size.
Specifications
Category | Device Management, Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | Web Connection | ||
Required options | Trimmer Unit TU-510 | ||
Required items | - | ||
Setting items | [Profile Name] | Enter the trimmer profile name. This item can be specified using up to 64 single-byte characters (21 double-byte characters). The following single-byte symbols are not available: "\", "/", ":", "#", "%", "&", "*", "?", """, "‘", "<", ">", "|", ".", and ",". | |
[Paper Size] | Select the paper size from the menu list. | ||
[Cut Type] | Select the cut type from the menu list. The following cut types are available. For details, refer to the relevant description page. | ||
[Unit] | Select the length unit. | ||
[OK] | Proceeds to the trimmer profile creation screen based on the specified conditions. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Trimmer Profile] - [Create] | ||
Web Connection - Login screen - [Finisher Manager] - [TU-510 Profile Manager] - [Create] | |||
Procedure

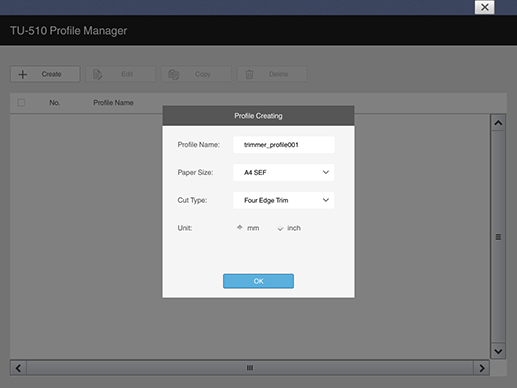

1
Click the [Profile Name] entry area.

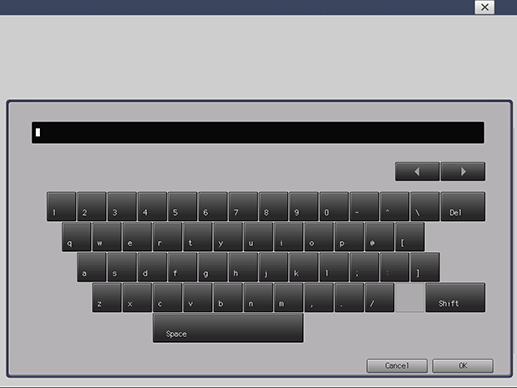

When an attempt is made to operate this system, the keyboard is displayed.
To access from [Finisher Manager] and perform operation, the character cursor is displayed.
2
Enter the desired profile name.
To operate on this system, press [OK] after entering the name.
3
Select [Cut Type] from the menu list.
4
Select [Paper Size] from the menu list.
The available paper sizes vary depending on the selected [Cut Type]. The available ranges are as follows.
[Four Edge Trim]: 140.0 mm e 153.0 mm to 330.2 mm e 1300.0 mm / 5.512" e 6.024" to 13.0" e 51.181"
[Multiple Cutting]: 299.4 mm e 440.0 mm to 330.2 mm e 487.5 mm / 11.787" e 17.323" to 13.0" e 19.193"
[Card Cutting]: 287.0 mm e 370.0 mm to 330.2 mm e 457.2 mm / 11.299" e 14.567" to 13.0" e 18.0"
[Advanced Setting]: 210.0 mm e 143.0 mm to 330.2 mm e 487.7 mm / 8.268" e 5.63" to 13.0" e 19.201"
5
Select [Unit] as necessary.
6
Press [OK].
The profile setting screen is displayed.
When the paper size is outside the available range, an error message is displayed. Set the paper size again.
7
Enter the numeric value for each item.
When operating this system, press the entry area; the keyboard is displayed.
When accessing from [Finisher Manager] to perform operation, click the entry area; the character cursor is displayed.
The setting items vary depending on [Cut Type]. For details, refer to [Four Edge Trim], [Multiple Cutting], [Card Cutting], or [Advanced Setting].
8
Press [Complete].
The profile is registered.
in the upper-right of a page, it turns into
and is registered as a bookmark.
