User's Guide

Bookmark

> Reg./Del. PaperSet > [Add/Edit] > [Add/Edit]

[Add/Edit]

Overview

Register, edit, or delete a paper profile.

Tips

Paper profiles registered with [ChangeIndividualSet.] of [Paper Setting] can also be edited.

Procedure (Registering a New Paper Profile)

1

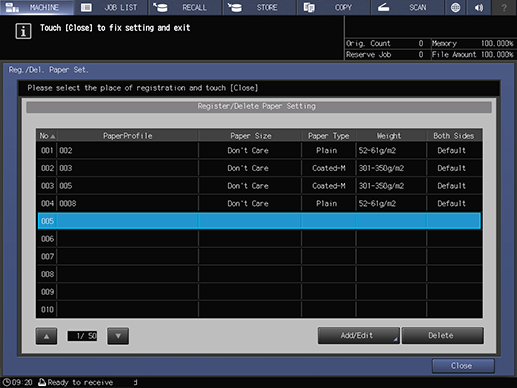

Select a line that doesn’t have a registered paper profile.

2

Press [Add/Edit].

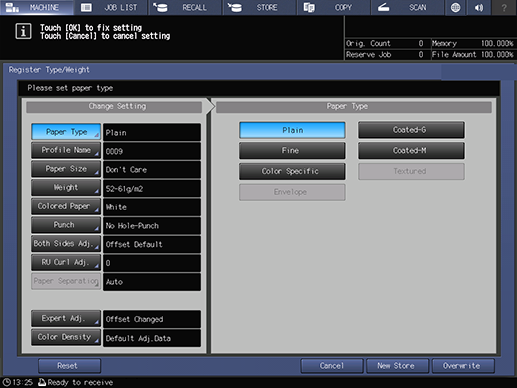

The [Register Type/Weight] screen is displayed.

Configure each item.

3

Press [New Store] or [Overwrite].

The paper profile is registered.

Procedure (Updating a Paper Profile)

1

Select the paper profile to update the setting.

2

Press [Add/Edit].

The [Register Type/Weight] screen is displayed.

Configure each item.

3

Press [Overwrite].

The paper profile is updated.

Tips

If you pushed [New Store] in step 3, the [Profile Name] screen is displayed. Edit the paper profile name and press [OK] to register the new paper profile in the unregistered line with the small No. This is useful when you want to create paper profiles of a similar type.
