Screen

Overview
Screen Access
Screen

Overview

Adjust misalignment of printing positions on the front and back sides in 2-sided printing.

When changing the paper to be loaded into a paper tray, always perform both-side adjustment.

Tips
  • You can change the default screen of [Both Sides]. For details, contact your service representative. When Intelligent Quality Optimizer IQ-501 is not mounted, the [AutoMeasure] screen cannot be set as the default. When this system is not equipped with a scanner, the [Scan Meas.] screen cannot be set as the default.

Screen Access

Touch panel - [MACHINE] - [Both Sides]

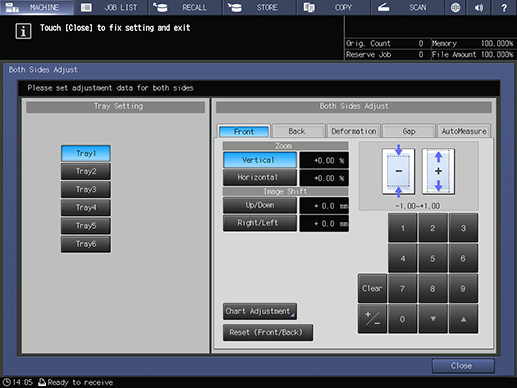

Screen

Common keys

Key name

Description

[Print Mode]

Outputs charts for adjustment purposes.

[Close]

Moves to the previous screen.
