Creating a profile: Touch Panel

To use this function, mount Integrated Color Care Unit IQ-501 on the machine.

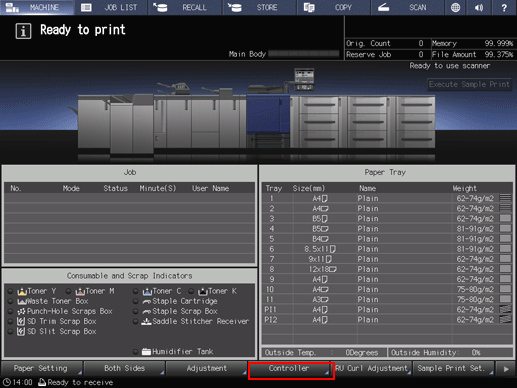

1. Press Controller.

2. Press Color Management.

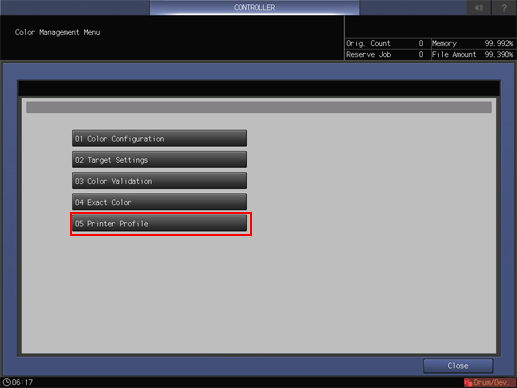

3. Press Printer Profile.

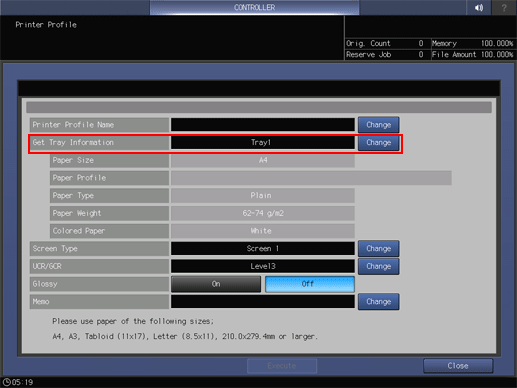

4. Press Change of Get Tray Information, and select a tray.

   To appropriately print charts, select a tray in which the appropriate size of paper is loaded.

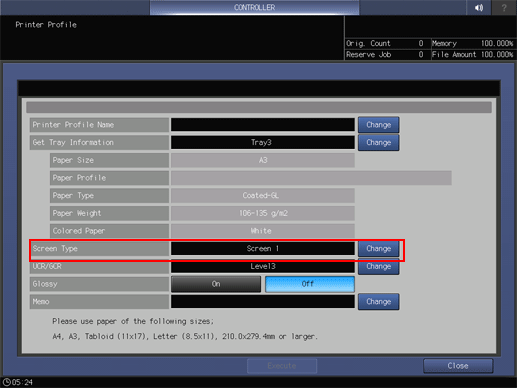

5. Press Change of Screen Type, and select a screen.

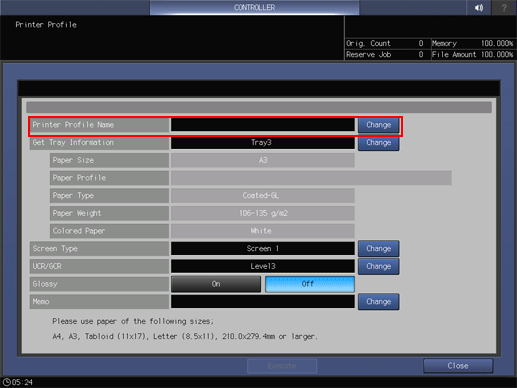

6. Press Change of Printer Profile Name, and create a profile name.

   • supplementary explanationTo change the level of UCR and GCR, press Change of UCR/GCR.

   • supplementary explanationSelect a Level of UCR and GCR

   • supplementary explanationTo make a note, press Change of Memo.

7. Press Execute.

   • supplementary explanationIf a printer profile that has the same name is already registered, a message is displayed. To overwrite the registered printer profile, press OK. To rename your profile, press Cancel.

   • supplementary explanationIf the number of registered profiles exceeds the maximum, a message is displayed. Delete unnecessary printer profiles.

   A test chart is printed.

   When processing is completed, a message is displayed.

8. Press Close.

   Press OK.
