Executing G7 Calibration: Touch Panel

To use this function, mount Integrated Color Care Unit IQ-501 on the machine.

1. Press Controller.

2. Press Color Management.

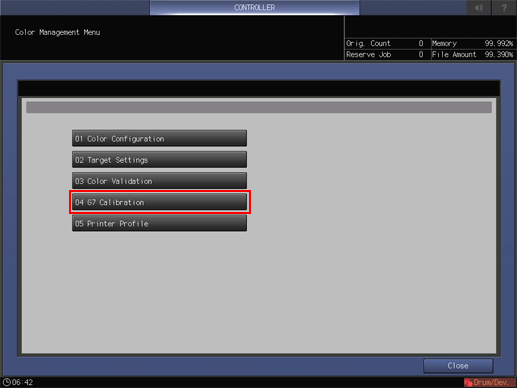

3. Press G7 Calibration.

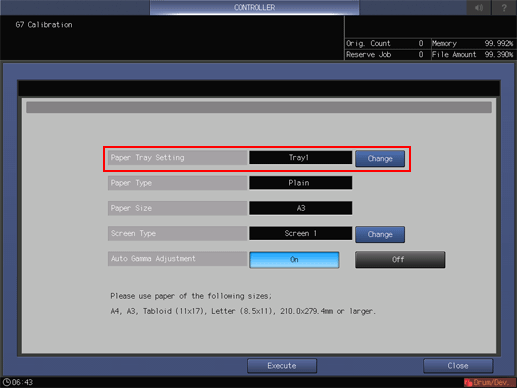

4. Press Change in Paper Tray Setting, and select a tray.

   To appropriately print charts, select a tray in which the appropriate size of paper is loaded.

5. Press Change of Screen Type, and select a screen.

   Selecting Custom Screen displays the Custom Screen Setting.

6. Press Execute.

   Controller flashes red during execution.

   A chart is printed up to 5 times.

   When processing is completed, a message is displayed.

7. Press Close.

   The result is displayed.

   To print the results, press Report Print.

8. Press OK.
