Network Tab: OpenAPI Setting

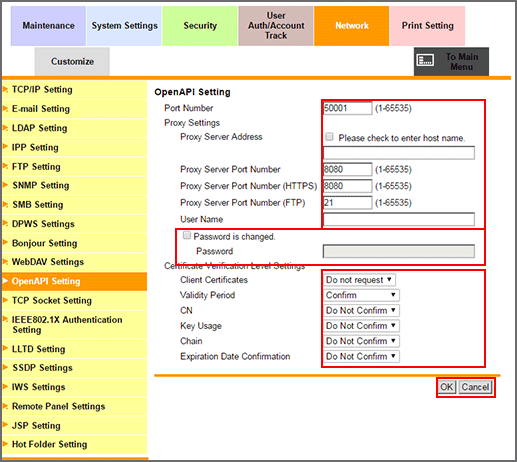

Click OpenAPI Setting on the menu of Network tab to display this screen.

This screen allows you to make a setting on the extended application I/F (OpenAPI).

1. Enter a desired port number into the Port Number text box.

2. Select either Non-SSL Only, SSL Only, or SSL/Non-SSL from Use SSL/TLS drop-down list.

   • supplementary explanationThis item is displayed when the device certificate is installed on the machine. For details about how to install the device certificate, refer to [Install a Certificate].

3. Set the port number to be used for SSL communication in Port No.(SSL). (This item is not displayed when the device certificate is not installed.)

4. Enter the Proxy Server Address. To enter the host name, select the Please check to enter host name. checkbox.

5. Enter Proxy Server Port Number.

6. Enter User Name.

7. Enter Password. If a password has already been set, Password is currently set. is displayed. To change the password, select the Password is changed. checkbox, and enter a new password.

8. If you want to verify certificates for communication via SSL, specify whether to confirm the items to be verified.

   Client Certificates: Selects whether to request clients that are connecting with the machine for a certificate.

   Validity Period: Checks whether the certificate's validity period is still valid.

   CN: Checks whether the Common Name (CN) of the certificate is identical to the address of the server.

   Key Usage: Checks whether the certificate is used according to the intended usage approved by the issuer of the certificate

   Chain: Checks whether or not the certificate chain (certificate pass) has a problem. The chain is verified by referring to the external certificates managed by the machine.

   Expiration Date Confirmation: Checks whether or not the certificate has expired.

9. Click OK. Clicking Cancel cancels the setting.

10. Click OK on the setting complete screen.
