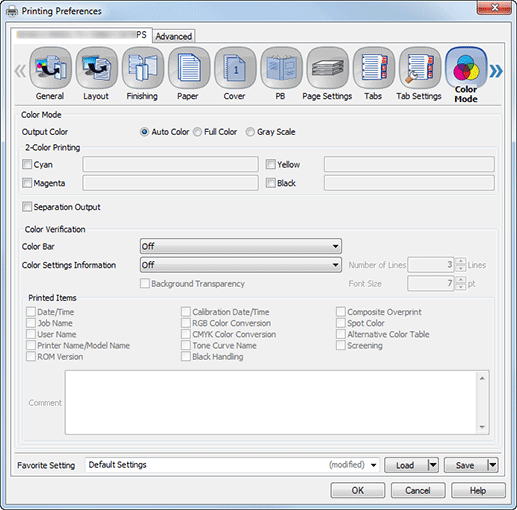

Color Mode Screen

Output Color

Auto Color, Full Color, Gray Scale

Set the output color.

-Auto Color: Prints the original in gray scale mode when the image is made only in K after color conversion, and in color mode when a color image is included after color conversion. However, if color and monochrome originals are mixed, the original is switched between color and gray scale modes, which reduces productivity.

-Full Color: Prints the original in color regardless of the color conversion result. When Full Color is selected, productivity is not reduced because the color mode is not switched for each process.

-Gray Scale: Prints the original in black and white regardless of the color conversion result. When Gray Scale is selected, productivity is not reduced because the color mode is not switched for each process.

* The color conversion result varies depending on the color configuration setting.

2-Color Printing

Cyan, Magenta, Yellow, Black

Set this to print with the specified 1 to 4 spot colors.

Select Cyan, Magenta, Yellow, or Black.

Specify spot color name from Spot Color Table Name, Spot Color Name.

For details, refer to [Spot Color]: Printing in Special Colors.

Separation Output

Off, On

Print cyan, magenta, yellow, and black separately for each proof.

Color Bar

Off, Left, Top, Right, Bottom, Image Controller Default

Set a print position for Color Bar.

Color Settings Information

Off, Left, Top, Right, Bottom, Image Controller Default

Specify a print position for Color Settings Information.

Number of Lines

1 to 5

Set the number of lines for Color Settings Information.

Background Transparency

Off, On

Prints Color Settings Information with a transparent image.

Font Size

4 pt to 36 pt

Specify the font size in Color Settings Information.

Printed Items

Date/Time

Prints the date and time when printing was executed.

Job Name

Prints the name of the currently executed print job.

User Name

Prints the name of the user who printed a job.

Printer Name/Model Name

Prints the machine name and model name.

ROM Version

Prints the ROM version of the image controller.

Calibration Date/Time

Prints the date and time when calibration has been carried out.

RGB Color Conversion

Prints the type of the profile for RGB color conversion.

CMYK Color Conversion

Prints the usage status of CMYK color conversion.

Tone Curve Name

Prints the currently used tone curve name.

Black Handling

Prints whether to use Black Handling.

Composite Overprint

Prints the usage status of Composite Overprint.

Spot Color

Prints whether to use spot colors.

Alternative Color Table

Prints whether to use alternative colors.

Screening

Prints the currently used screen setting.

Comment

Prints a comment using up to 200 characters. However, printing may be cut off depending on the number of printed pages or the number of lines.
