Available operations in Controller

Press Controller to display the Controller Machine Setting Menu screen. The Controller Machine Setting Menu screen enables you to check various settings.

Tips

If the Image Controller is not working correctly, the Controller on the MACHINE screen appears shaded to show inactivity.

Displaying Controller Machine Setting Menu Screen

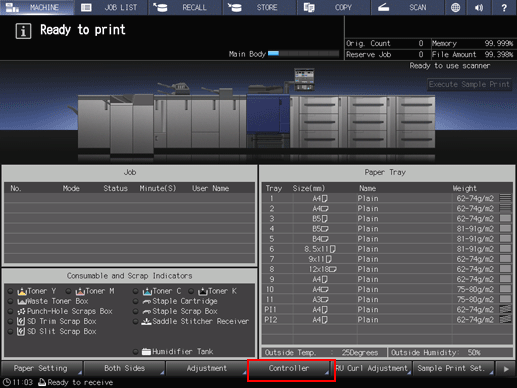

Press the MACHINE tab to display the MACHINE screen.
Press Controller on the MACHINE screen.

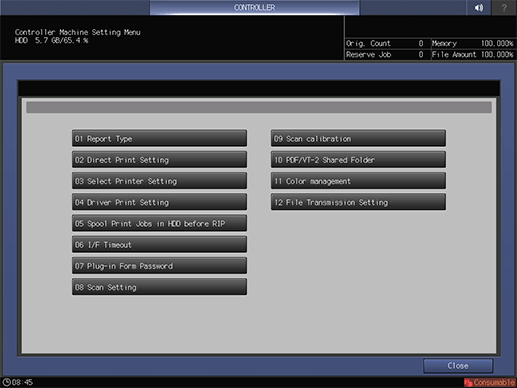

The Controller Machine Setting Menu screen is displayed.

Reference

Controller Machine Setting Menu Screen

You can set the following functions.

Name	Description	Reference
Report Type	Outputs Configuration Page Print, PS Demo Page Print, PCL Font List, and PS Font List.	[Report Type]
Direct Print Setting	Specifies default settings including Duplex for a job which has no setting, such as one using the direct print function without a printer driver.	[Direct Print Setting]
Select Printer Setting	Assigns a default output format number to each port and reflects it to Direct Print Setting.	[Select Printer Setting]
Driver Print Setting	Specifies Convert Paper Size, Page Number Insert Sheet, Number of Tabs, and Perfect Bind Spine Width.	[Driver Print Setting]
Spool Print Jobs in HDD before RIP	Specifies job spool setting from Auto, Enable, or Disable.	[Spool Print Jobs in HDD before RIP]
I/F Timeout	Specifies the time until a communication timeout occurs.	[I/F Timeout]
Plug-in Form Password	Inputs a password for the form function for a PS Plug-in driver.	[Plug-in Form Password]
Scan Setting	Sets a time to delete the stored data automatically. Define rules about the automatically created file name.	[Scan Setting]
Scan calibration	Executes calibration by using the scanner of this machine.	[Scan calibration]
PDF/VT-2 Shared Folder	Specify whether to enable the PDF/VT-2 shared folder.	[PDF/VT-2 Shared Folder]
Color management	Reproduces stable colors with the machine.	[Color Management]
File Transmission Setting	Select a destination to send the RIPed file to.	[File Transmission Setting]
