Home Screen

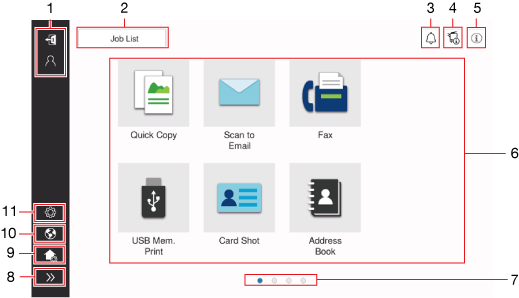

Layout of home screen

The layout of the home screen is as follows.

No.

Name

Description

1

User/Account Name

Displayed when user authentication and account track are enabled.

Opening the left area displays the name of the current login user or the account name.

Tapping [Logout] logs out.

2

[Job List]

Displays active or standby jobs. If necessary, you can check job logs or print a communication report.

This list displays the operation status of the current job on the [Job List] key when it is running. If necessary, you can stop the active job using the Stop key displayed next to the [Job List] key.

For details on [Job List], refer to Here.

3

Notification icon

You can check warnings or notices related to the status of this machine.

4

Device information icon

You can check the current date and time, free space in memory, and toner level.

The corresponding device information is displayed when:

  • A nonstandard USB flash drive is connected to this machine;

  • Device information logs are spooled;

  • Image logs are transferred;

  • This machine is in fax redial wait state;

  • This machine is receiving data;

  • This machine is sending data;

  • An E-mail server (POP) connection error occurs; or

  • The enhanced security mode is enabled.

5

Information icon

Displays a message for users.

6

Function key

Displays shortcut keys assigned to any function.

7

Page Indicator

You can check the currently displayed page number.

8

Left area open/close icon

Opens or closes the left area.

Opening the left area displays the names of the icons in the left area.

9

[Customize Home screen]

Sets the function keys to display on the home screen.

10

[Language]

Temporarily changes the language to be displayed on the panel.

This option is displayed when [Temporarily Change Language] (Here) is set to ON.

11

[Utility]

Configure settings of this machine or check the use status of this machine.

For details on [Utility], refer to Here.

Changing a function to be displayed on the home screen

Change the function keys displayed on the home screen to suit your environment.

  • When user authentication is enabled, you need to log in as a user with the administrator authority in order to change the function keys displayed on the home screen.

  1. Tap [Customize Home screen] in the left area of the home screen.

  2. Enter the administrator password, and tap [OK].

    • When you are logging in as a user with the administrator authority, proceed to step 3.

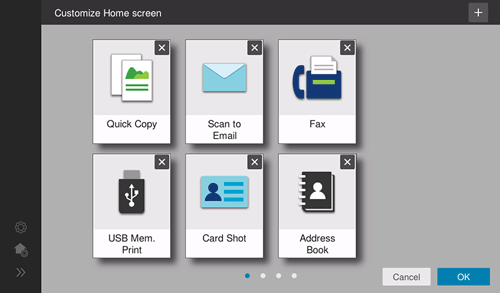

    The display changes to the edit mode of the home screen.

  3. Edit a function key.

    • To switch the page on the home screen, swipe the background of the screen.

    • To delete a function key, click the delete icon () of a function key.

    • To add a function key, click the add icon (). Select the target function key from the list, and tap [OK]. The function key is added to the currently displayed page. If there is no space to place an additional function key on the current page, the function key is placed on a new page.

    • Dragging & dropping a function key allows you to change the layout of function keys on a page or move a function key to another page.

  4. Tap [OK].
